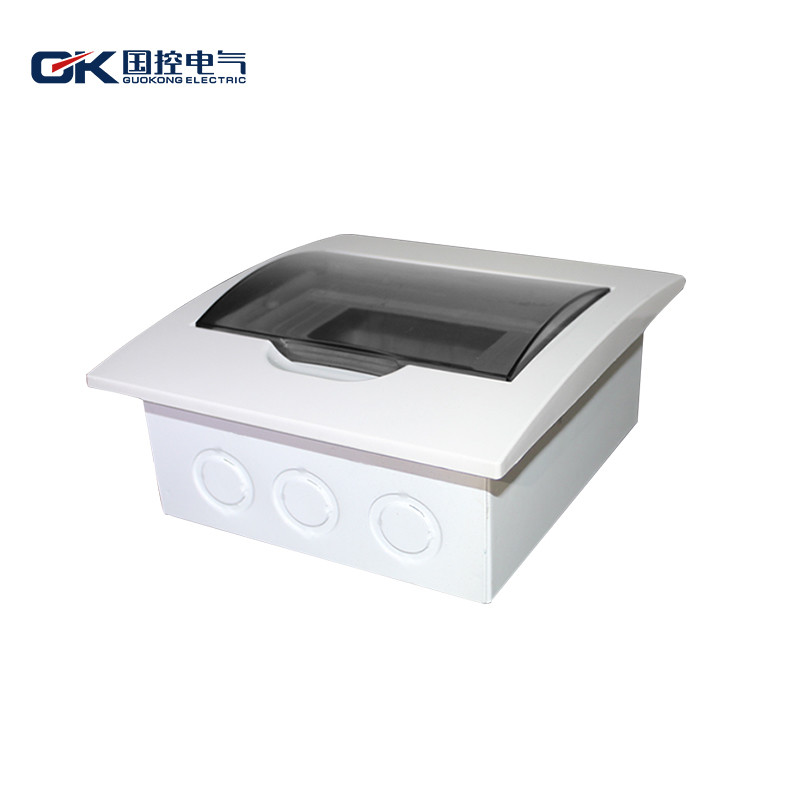

Brief Description

This distribution box applies to terminal of AC 50Hz(or 60Hz), rated operated voltage up to 400V and rated current up to 63A, equipped with various modular electric for functions of electric energy distribution, control, ( short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.

Structure

Symmetric base enclosure: solid enclosure can be embedded into thinner wall; knockouts of various sizes on four sides of box;

Single row connecting rail can be adjusted vertically; single row: adjustable rail depth; Flat front panel can be used reversely; equipped with arc door; front panel shield can be knocked out to increase number of ways.

Main Technical Data

Equipeed with transparent/non-transparent door

Single row: door open upward 90 degrees;

Rated current: 4 way 50A, 6~36 way 63A

Material: insulating, self-extinguishing fire material

Protection level: indirect contact proof 2 protection

We provide various sizes of distribution box.

We provide various thickness of distribution box.

If you need specified product,please consult us.
