Indoor Painted carbon steel RAL 7035 light gray solar module distribution box

    Buy cheap Indoor Painted carbon steel RAL 7035 light gray solar module distribution box from wholesalers

    Buy cheap Indoor Painted carbon steel RAL 7035 light gray solar module distribution box from wholesalers
    • Buy cheap Indoor Painted carbon steel RAL 7035 light gray solar module distribution box from wholesalers
    • Buy cheap Indoor Painted carbon steel RAL 7035 light gray solar module distribution box from wholesalers

    Indoor Painted carbon steel RAL 7035 light gray solar module distribution box

    Ask Lasest Price
    Brand Name : QK
    Certification : RoHS, CE, UL,CCC,ISO9001
    Payment Terms : T/T,L/C,Western Union
    Price : Negotiation
    Supply Ability : 1000 Pieces/month
    Delivery Time : 5-8 work days
    Model Number : JXF1008020
    • Product Details
    • Company Profile

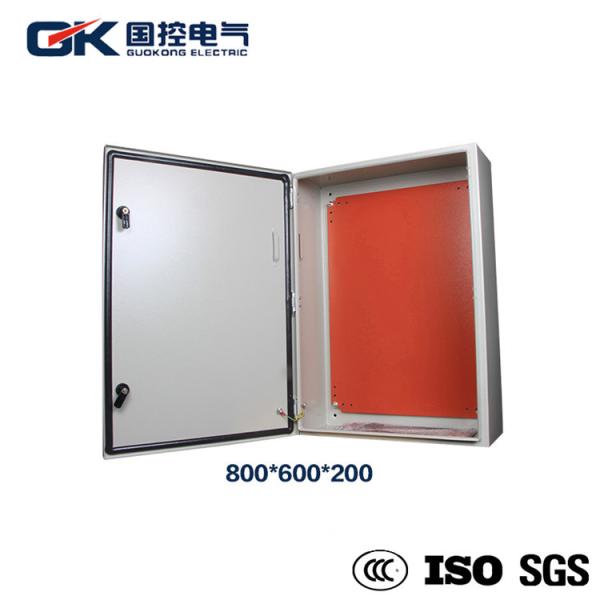

    Indoor Painted carbon steel RAL 7035 light gray solar module distribution box

    Ip66 Cold Rolled Steel Plate Stainless Steel Custom-made Electrical Distribution Box

    JXF series base industry box (export) more than 30 kinds of specifications, the products all use cold rolled steel plate, the advanced production technology and the only and with advanced level of CNC fully automatic production line at home, the surface through epoxy resin electrostatic spraying treatment, beautiful and durable. The sealing strip of the box door is built in one time by the imported sealing strip casting machine. It has the advantages of dust-proof, rainwater infiltration and so on. There is a line hole under the box, with a line hole cover plate (the cover plate is equipped with a seal), the protection grade is up to IP65, the inside of the box is equipped with the installation floor, which can fit all kinds of electrical equipment and the door plate opens more than 90. Degree, turn flexibly.


    Boxes are completed with:
    1. 2 zincpassivated rails to be fixed on the door.
    2. Mounting plate.
    3. Gland plate and gasket.
    4. Package with hardware for earth connection and screws to mount all Components.

    Characteristic

    Product nameDistribution box
    MaterialSheet Steel
    OEMOffered
    Package1 Piece Per Carton
    CertificationCE,CCC,ROHS,TUS
    Paint FinishEpoxy Polyester Coating
    LockAvailable On Request
    Thckness1.5mm*1.5mm*2.0mm
    ColorRal7035
    AccessoriesWall Mount Brackets To Be Offered Seperately

    If you need specified product,please consult us.

    StandardOverall Dimension
    Height(mm)Width(mm)Depth(mm)Thickness(mm)
    JXF3025153002501501.0/1.0/1.0
    JXF4030154003001501.0/1.2/1.2
    JXF5040155004001501.0/1.2/1.2
    JXF4030204003002001.0/1.2/1.2
    JXF5040205004002001.0/1.2/1.2
    JXF6040206004002001.0/1.2/1.2
    JXF6050206005002001.2/1.5/1.5
    JXF7050207005002001.2/1.5/1.5
    JXF8060208006002001.2/1.5/1.5
    JXF100802010008002001.5/1.5/2.0
    JXF5040255004002501.0/1.2/1.2
    JXF6050256005002501.2/1.5/1.5
    JXF8060258006002501.2/1.5/1.5
    JXF100802510008002501.5/2.0/2.0
    JXF100803010008003001.5/2.0/2.0
    JXF12010030120010003001.5/2.0/2.0

    Industrial 3 phase power distribution box
