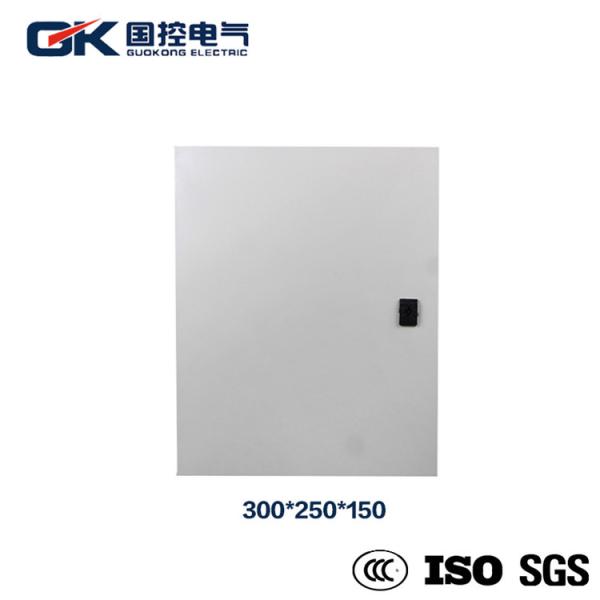

Polished Indoor Distribution Box Electrical Cable Enclosures Zincpassivated Sheet Steel

Ask Lasest Price
Brand Name :	QK
Certification :	RoHS, CE, UL,CCC,ISO9001
Payment Terms :	T/T,L/C,Western Union
Price :	Negotiation
Supply Ability :	1000 Pieces/month
Delivery Time :	5-8 work days
Model Number :	JXF302515

Add to Cart

Product Details
Company Profile

Polished Indoor Distribution Box Electrical Cable Enclosures Zincpassivated Sheet Steel

Zincpassivated Waterproof Sheet Steel Stainless Steel Polished Indoor Distribution Box

Construction
1. Body and door manufactured in 1.2/1.5mm sheet stell.
2. Mounting plate with folded edge In 2.0 mm sheet steel
3. Finished with thermosetting epoxy polyester powder coating. Body and door textured finish.
4. Mounting plate in smooth finish.
5. Protection Degree IP 55/65 protection degree

Boxes are completed with:
1. Two zincpassivated rails to be fixed on the door.
2. Mounting plate.
3. Gland plate and gasket.
4. Package with hardware for earth connection and screws to mount all Components.

Characteristic

Product name	Distribution box
Material	Sheet Steel
OEM	Offered
Package	1 Piece Per Carton
Certification	CE,CCC,ROHS,TUS
Paint Finish	Epoxy Polyester Coating
Lock	Available On Request
Thckness	1.0mm1.2mm1.2mm
Color	Ral7035
Accessories	Wall Mount Brackets To Be Offered Seperately

Standard	Overall Dimension
Standard	Height(mm)	Width(mm)	Depth(mm)	Thickness(mm)
JXF302515	300	250	150	1.0/1.0/1.0
JXF403015	400	300	150	1.0/1.2/1.2
JXF504015	500	400	150	1.0/1.2/1.2
JXF403020	400	300	200	1.0/1.2/1.2
JXF504020	500	400	200	1.0/1.2/1.2
JXF604020	600	400	200	1.0/1.2/1.2
JXF605020	600	500	200	1.2/1.5/1.5
JXF705020	700	500	200	1.2/1.5/1.5
JXF806020	800	600	200	1.2/1.5/1.5
JXF1008020	1000	800	200	1.5/1.5/2.0
JXF504025	500	400	250	1.0/1.2/1.2
JXF605025	600	500	250	1.2/1.5/1.5
JXF806025	800	600	250	1.2/1.5/1.5
JXF1008025	1000	800	250	1.5/2.0/2.0
JXF1008030	1000	800	300	1.5/2.0/2.0
JXF12010030	1200	1000	300	1.5/2.0/2.0

Industrial 3 phase power distribution box
